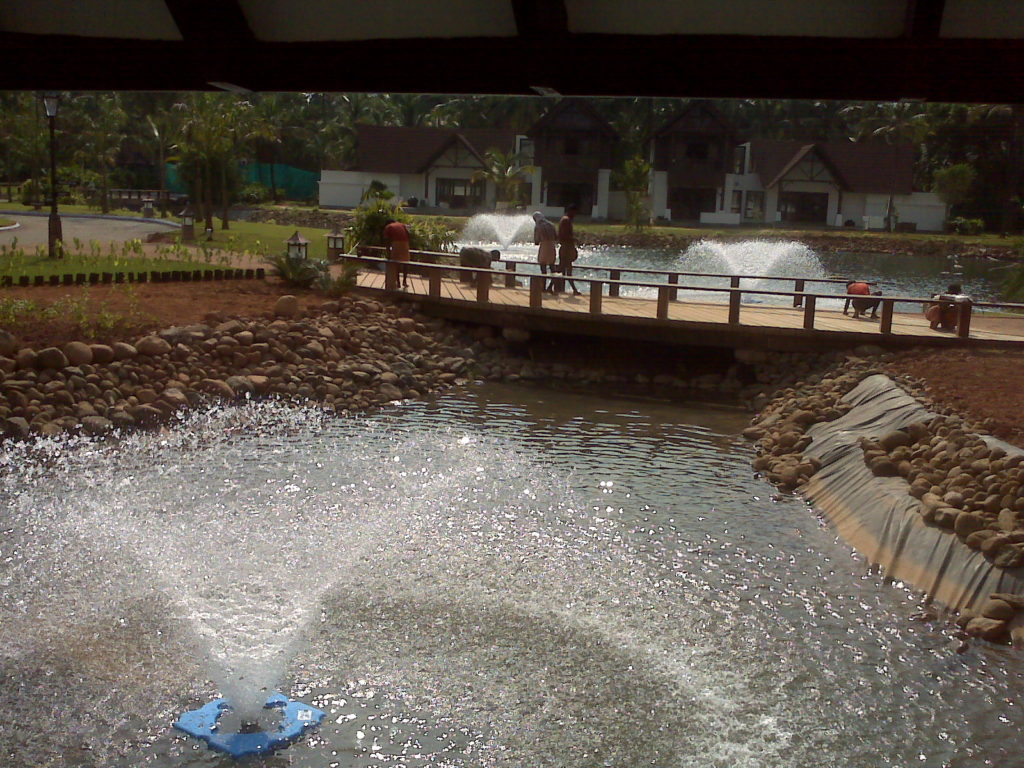

Sprint is classified as surface aerator and is suitable for use on installations in fresh and salt water, as the durability of materials allows it to be used without problems in seawater.
Sprint is highly efficient, and allows for increased levels of oxygen in the water without causing turbulence on the bottom.

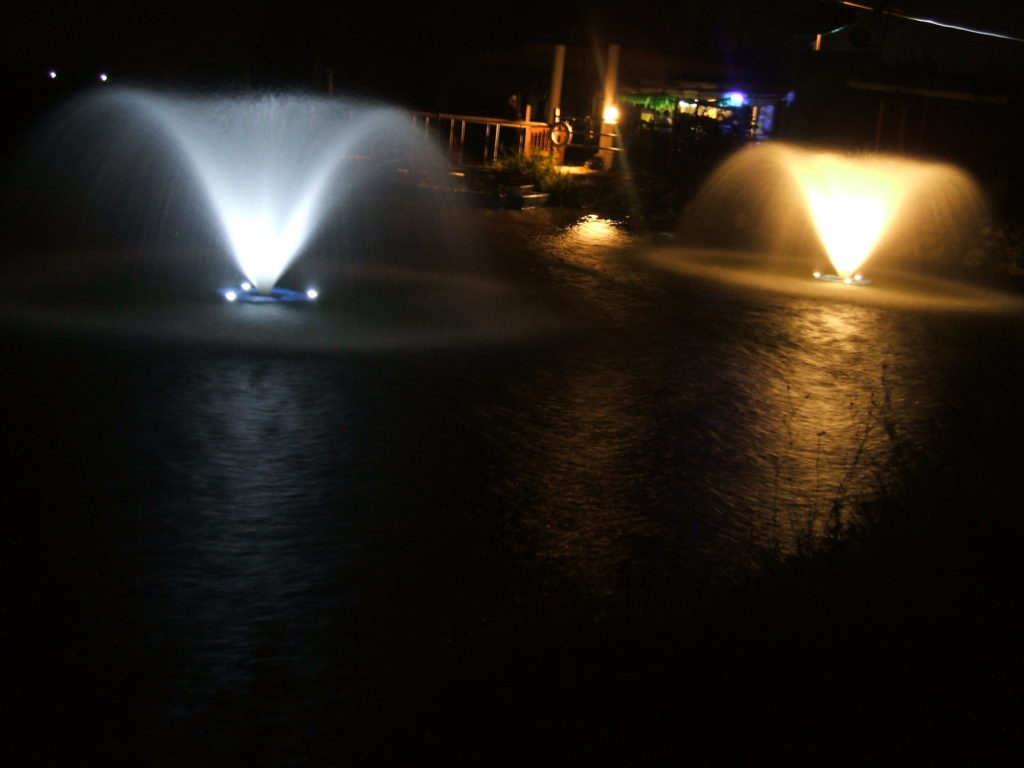

It is suitable for decorative purposes, due to its high fountain, which also available with colored lights for spectacular nighttime applications.

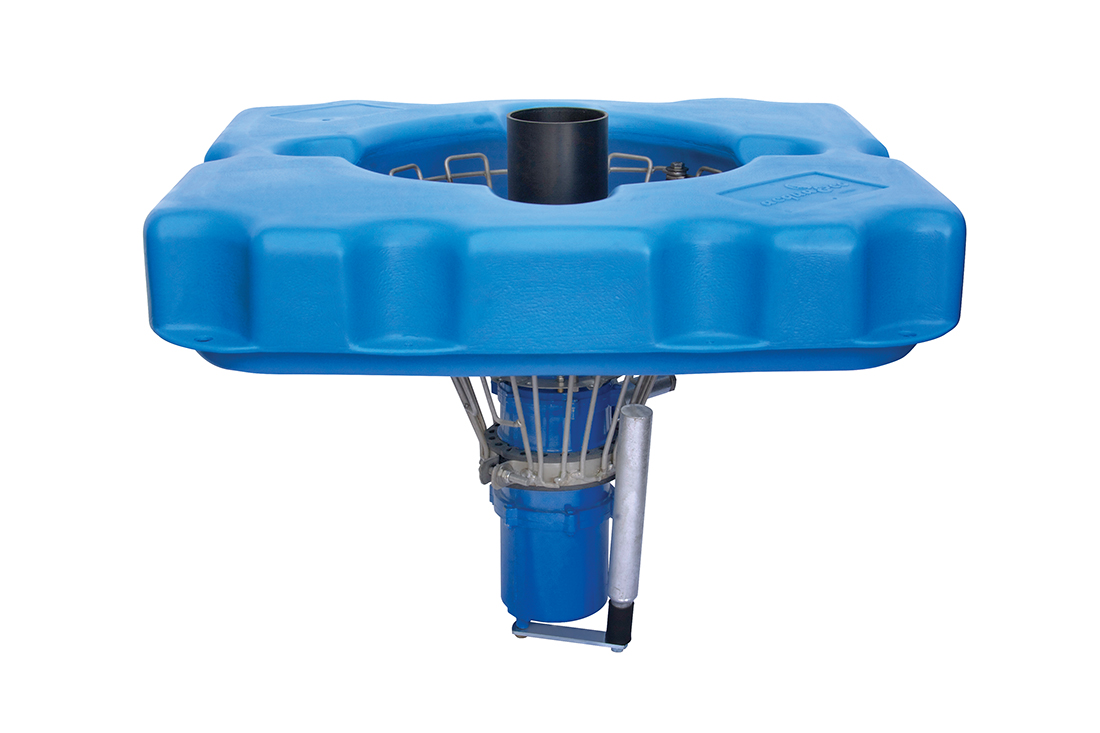

Sprint is Available with floats.
50 Hz
| Single phase 230 V | Three phase 400 V | Nom. Pow. HP | Nom. Pow. kW | Fountain height mt | Fountain width mt | Capacity l/min | r.p.m./1" | Weight kg | Cable mt |
|---|---|---|---|---|---|---|---|---|---|
| SPRINT 0,8 M | SPRINT 0,8 T | 0,8 | 0,6 | 1,3 | 5,5 | 1110 | 2850 | 24 | 20 |
| SPRINT 1 M | SPRINT 1 T | 1 | 0,75 | 1,7 | 6,5 | 1250 | 2850 | 25 | 20 |
| SPRINT 1,5 M | SPRINT 1,5 T | 1,5 | 1,1 | 1,9 | 7 | 1500 | 2850 | 25 | 20 |
| SPLASH 2008 1,5 M | SPLASH 2008 1,5 T | 1,5 | 1,1 | 1,1 | 5 | 3100 | 2800 | 24 | 20 |
| SPLASH 2008P 2 M | SPLASH 2008 2 T | 2 | 1,5 | 1,3 | 5,5 | 3700 | 2800 | 25 | 20 |
| SPLASH 2008P 3 T | 3 | 2,2 | 1,3 | 6,5 | 5400 | 2800 | 27 | 20 |
60 Hz
| Single phase 110 V 220 V | Three phase 220 V 380 V 440 V | Nom. Pow. HP | Nom. Pow. kW | Fountain height mt | Fountain width mt | Capacity l/min | r.p.m./1" | Weight kg | Cable mt |
|---|---|---|---|---|---|---|---|---|---|
| SPRINT 0,8 M | SPRINT 0,8 T | 1,5 | 1,1 | 2,1 | 6,5 | 1300 | 3350 | 24 | 20 |
| SPRINT 1 M | SPRINT 1 T | 2 | 1,5 | 2,5 | 7 | 1370 | 3350 | 24 | 20 |
| SPRINT 1,5 M | SPRINT 1,5 T | 2,5 | 1,9 | 2,9 | 7,5 | 1450 | 3350 | 27 | 20 |
| SPLASH 2008 1,5 M | SPLASH 2008 1,5 T | 1,5 | 1,1 | 1,3 | 6,5 | 3100 | 3350 | 24 | 20 |
| SPLASH 2008P 2 M | SPLASH 2008 2 T | 2 | 1,5 | 1,4 | 7 | 3800 | 3350 | 25 | 20 |
| SPLASH 2008P 3 T | 2,5 | 1,9 | 1,7 | 7,5 | 5000 | 3350 | 27 | 20 |
